Home > Carbon Steel > Carbon Steel IS 3589 Pipes

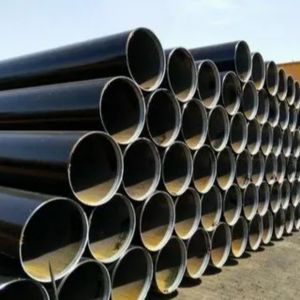

Impex Tube India, Mumbai, India, is a reliable manufacturer and supplier of high-quality Carbon Steel IS 3589 pipes. Renowned for providing high quality and reliability, we offer a variety of pipes that exceed industry standards. Our Carbon Steel IS 3589 pipes are manufactured for ultimate strength and durability, making them suitable for diverse applications such as water supply, sewage, and structural work. We deliver high-quality products on time to satisfy our customers’ varied needs.
Carbon Steel IS 3589 Pipes consist of carbon, manganese, phosphorus, sulfur, and silicon, providing superior strength and durability. The pipes have mechanical properties like high tensile strength, weldability, and corrosion resistance, making them highly applicable in industries. With a tensile strength of 410-550 MPa and yield strength of 250 MPa, they provide superior performance under pressure. The benefits are cost savings, ready availability, strength, and durability against wear and tear, and hence suitability for water carriage, building, and structural use.
| Size in MM | 15 Nominal Bore to 150 Nominal Bore |
| Dimension & Tolerance | Dimensions IS: 3589 = 2004 / Equivalent to BS = 1985/ 1387 |
| Specifications | IS 3589 |
| Surface Finish | Black |
| Pipe Marking | All Pipe are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number |
| Features | High Strength, Corrosion Resistant, Deformability & High Toughness |
| Length | As per Client’s requirement |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Carbon Steel IS 3589 Pipes from Impex Tube India guarantees excellent corrosion resistance, strength and durability. Our Pipe is suitable for varied industrial applications, providing reliability and performance in demanding conditions while ensuring competitive prices.
| Nominal Bore | Nominal Bore | Outer Diameter | Light | Medium | Heavy | |||
| Thickness | Weight | Thickness | Weight | Thickness | Weight | |||
| MM | IN | MM | MM | Kg/Meter | MM | Kg/Meter | MM | Kg/Meter |
| 6 | 1/8″ | 10.32 | 1.80 | 0.361 | 2.00 | 0.407 | 2.65 | 0.493 |
| 10 | 3/8″ | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.020 |
| 15 | 1/2″ | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.450 |
| 20 | 3/4″ | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.900 |
| 8 | 1/4″ | 13.49 | 1.80 | 0.517 | 2.35 | 0.650 | 2.90 | 0.769 |
| 25 | 1″ | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.970 |
| 40 | 11/2″ | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.430 |
| 50 | 2″ | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.170 |
| 65 | 21/2′ | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.900 |
| 80 | 3″ | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.100 |
| 100 | 4″ | 114.30 | 3.65 | 9.890 | 4.50 | 12.100 | 5.40 | 14.400 |
| 125 | 5″ | 139.70 | ….. | …… | 4.85 | 16.200 | 5.40 | 17.800 |
| 150 | 6″ | 165.10 | …… | ……. | 4.85 | 19.200 | 5.40 | 21.200 |
| Wall Thickness | 7 Inch Nominal Bore 193.7 Kg/Meter | 8 Inch Nominal Bore 219.1 Kg/Meter | 10 Inch Nominal Bore 273 Kg/Meter | 12 Inch Nominal Bore 323.7 Kg/Meter | 14 Inch Nominal Bore 355.6 Kg/Meter | 16 Inch Nominal Bore 406.4 Kg/Meter | 18 Inch Nominal Bore 454 Kg/Meter | 20 Inch Nominal Bore 508 Kg/Meter |
| 9.53 | …… | 51.50 | 60.24 | 73.75 | 81.21 | 93.13 | 105.00 | 117.00 |
| 4.85 | 22.59 | 25.62 | 32.07 | 38.13 | …… | …….. | ……. | ……. |
| 5.20 | 24.17 | 27.43 | 34.34 | 40.84 | …… | …….. | …….. | …….. |
| 5.60 | 26.00 | 29.28 | 36.93 | 43.93 | 48.11 | …….. | ……… | ………. |
| 7.01 | 32.27 | 36.76 | 46.43 | 55.45 | 61.82 | 69.04 | …… | …… |
| 7.94 | ….. | 41.00 | 50.95 | 61.85 | 67.98 | 77.92 | 87.80 | ……. |
| 6.35 | 29.34 | 33.28 | 41.73 | 49.67 | 54.43 | 62.35 | 70.50 | 78.50 |
| 6.00 | 27.88 | 31.53 | 39.50 | 47.02 | 51.49 | 61.00 | 69.00 | …….. |
| 8.18 | …… | 42.56 | 53.42 | 65.12 | …… | …… | …… | …… |
| 12.70 | …… | ….. | …… | …… | 107.28 | 123.30 | 139.00 | 155.00 |
| Nominal Bore | Outside Diameter | Light Thickness Weight | Medium Thickness Weight | Heavy Thickness Weight | |||||
| Inch | MM | Inch | MM | MM | kg/Meter | MM | kg/Meter | MM | kg/Meter |
| 1/8 | 3 | 0.406 | 10.32 | 1.80 | 0.361 | 2.00 | 2.65 | 0.493 | |
| 1/4 | 6 | 0.532 | 13.49 | 1.80 | 0.517 | 2.35 | 0.407 | 2.90 | 0.769 |
| 3/8 | 10 | 0.872 | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.02 |
| 3/4 | 20 | 1.094 | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.90 |
| 1.1/2 | 40 | 1.906 | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.43 |
| 1 | 25 | 1.312 | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.97 |
| 1.1/4 | 32 | 1.656 | 42.90 | 2.65 | 2.580 | 3.25 | 3.140 | 4.05 | 3.84 |
| 1/2 | 15 | 0.844 | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.45 |
| 2 | 50 | 2.375 | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.17 |
| 2.1/2 | 65 | 3.004 | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.90 |
| 6 | 150 | 6.500 | 165.10 | – | – | 4.85 | 19.20 | 5.40 | 21.2 |
| 3 | 80 | 3.500 | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.1 |
| 4 | 100 | 4.500 | 114.30 | 3.65 | 9.890 | 4.50 | 12.10 | 5.40 | 14.4 |
| 5 | 125 | 5.500 | 139.70 | – | – | 4.85 | 16.20 | 5.40 | 17.8 |
Impex Tube India is a top supplier of the largest Carbon Steel IS 3589 Pipes in Mumbai, India, with a wide range of high-quality pipes customized according to the needs of various industries, ensuring timely delivery and great service to fulfill the demands of multiple projects.
Yes, we provide sizes as per customer requirements for Carbon Steel IS 3589 Pipes. Our experts at Impex Tube India ensure that we deliver customized solutions for all your Piping & tubing requirements. For more details, contact us at sales@impextubeind.com
Carbon Steel IS 3589 Pipes are generally applied in a variety of uses in industries. These pipes find their major use in water supply systems, sewerage systems, and liquid as well as gas transport pipelines. They are also widely used in construction for structural purposes, such as support structures and framing structures. Also, IS 3589 pipes are utilized for oil and gas pipelines, irrigation networks, and chemical plants owing to their resistance to corrosion, durability and strength. These properties of their make them imperative to a multitude of civil engineering and industrial applications.
