Home > Carbon Steel > Carbon Steel A671 Grade CC60 Pipes

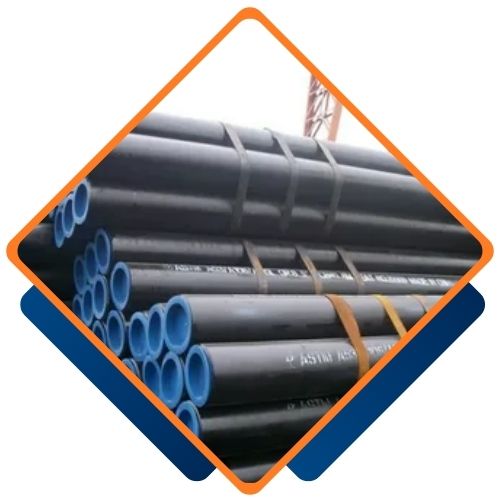

Impex Tube India is known to provide high-quality piping solutions to a wide variety of industries. Our Carbon Steel A671 Grade CC60 Pipes are made of electric-fusion-welded carbon steel and are suitable for atmospheric and lower temperature service. These pipes can be supplied in seamless as well as welded forms, providing strength and versatility for pressure vessel and structural uses. With superior mechanical characteristics and high material strength. A671 Grade CC60 Pipes guarantee reliability and strength in challenging applications with the need for constant performance.
CS A671 Grade CC60 Pipes consist of carbon, manganese, phosphorus, sulfur, and silicon, each with controlled percentages to provide greater strength and weldability. The common mechanical characteristics comprise a minimum tensile strength of 415 MPa and minimum yield strength of 240 MPa, along with good elongation for enhanced ductility. Physically these pipes are characterized by high toughness, particularly at low temperatures, and have good thermal conductivity and pressure resistance. A671 CC60 pipes, designed for fusion-welded construction, provide reliable performance in structural and pressure service applications, providing long-term strength and durability.
Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
Specification | ASTM A671 /ASME SA671 |
Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
Class Designation | CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42 |
Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Shipment & Transportation | By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
Ends | Plain Ends / Beveled Ends / Coupling |
Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T |
Outer Diameter Size | 16″ NB To 100″ NB (Nominal Bore Size) |
| Material | A516 Gr 60 |
Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Standards | CC60, JIS JPI-SLA24B (3) |

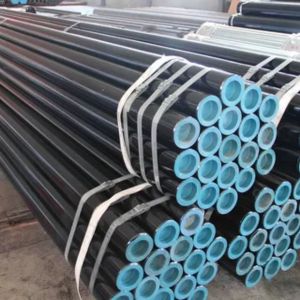

Type | EFW (ELECTRIC FUSION WELDED PIPES) |
Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Specification | Steel grade | Chemical composition | Remarks | |||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ti | |||
| Pipes for pressure service ASTM A671 | -/A45 | -/0.17 | – | 0.98 | 0.035 | 0.035 | – | A671/ A672 |
| -/A50 | -/0.22 | – | ||||||
| CA55/A55 | 0.28 | – | ||||||
| -/B55 | -/0.20 | 0.13 ~0.45 | ||||||
| CB60/B60 | 0.24 | |||||||
| CB65/B65 | 0.28 | |||||||
| CB70/C70 | 0.31 | 1.30 | ||||||
| -/C55 | -/0.18 | 0.55 ~0.98 | ||||||
| CC60/C60 | 0.21 | |||||||
| CC65/C65 | 0.24 | 0.79 ~1.30 | ||||||
| CC70/C70 | 0.27 | |||||||
| Products | Steel Grade | BASE METAL MECHANICAL COMPOSITION | Welding point tensile strength (N/mm2) | Remarks | |||
|---|---|---|---|---|---|---|---|
| Yield point (N/mm2) | Tensile Stregth (N/mm2) | Test Pieces | Elongation (%) | ||||
| Pipes for pressure service ASTM A671 | -/A45 | -/165 | -/310~450 | – | -/30 | -/310~450 | A671/ A672 |
| -/A50 | -/185 | -/345~485 | -/28 | -/345~485 | |||
| CA55/A55 | 205 | 380~515 | 27 | 380~515 | |||
| -/B55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CB60/B60 | 220 | 415~550 | 25 | 415~550 | |||
| CB65/B65 | 240 | 450~585 | 23 | 450~585 | |||
| CB70/B70 | 260 | 485~620 | 21 | 485~620 | |||
| -/C55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CC60/C60 | 220 | 415~550 | 25 | 415~550 | |||
| CC65/C65 | 240 | 450~585 | 23 | 450~585 | |||
| CC70/C70 | 260 | 485~620 | 21 | 485~620 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Opting for CS A671 Grade CC60 Pipes from Impex Tube India guarantees excellent corrosion resistance, superior strength, and long-lasting durability. These pipes are crafted to meet the demands of various industrial applications, offering dependable performance even in harsh environments. Backed by competitive pricing and consistent quality, our A671 CC60 Pipes provide a reliable solution for projects that require strength and resilience.
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Impex Tube India stands as a leading supplier of Carbon Steel A106 Grade B Pipes in Mumbai, India, offering a wide selection of premium-quality pipes designed to suit the needs of various industries. With a strong focus on dependable delivery and outstanding customer service, we ensure tailored solutions that meet the demands of diverse projects with efficiency and reliability.
At Impex Tube India, we provide custom-sized Carbon Steel A671 Grade CC60 Pipes to meet your unique specifications. Our expert team is dedicated to offering personalized solutions for all your piping and tubing requirements. For further information, feel free to contact us at sales@impextubeind.com.
Carbon Steel A671 Grade CC60 Pipes find extensive applications in industries needing high-strength, low-temperature service like power plants, oil & gas, petrochemical, and refinery industries. The pipes are suitable for pressure vessels, structural frames, heat exchangers, and fluid pipelines under moderate to high pressure. Their weldability, long lifespan and resistance to corrosion render them perfect for aboveground as well as underground uses. A671 CC60 pipes are also favored in applications where consistent performance, reliability, and mechanical strength are critical, particularly in environments that are exposed to temperature fluctuations and harsh operating conditions.
