Home > Carbon Steel > Carbon Steel A795 GR B Pipes

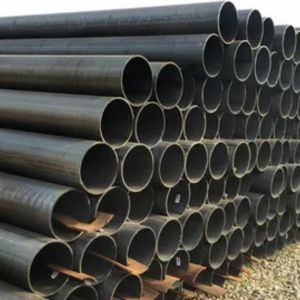

At Impex Tube India in Mumbai, India, we proudly offer superior piping solutions engineered to suit the needs of the industry. We provide Carbon Steel A795 GR B Pipes, made from rugged carbon steel and fitting ASTM A795 Grade B specifications. The pipes are supplied in round and custom forms and are used mostly in fire protection systems like sprinklers. Famed for their strength, superior corrosion resistance and performance at moderate pressure, they find wide industrial applications.
Carbon Steel A795 GR B Pipes are fabricated with high-quality carbon steel, which contains up to 0.30% Carbon, 0.29-1.06% Manganese, 0.035% Phosphorus, and 0.035% Sulfur. They possess superior mechanical properties with a minimum yield strength of 240 MPa and tensile strength of 415 MPa. The physical attributes are fine corrosion resistance, weldability and durability. They are appropriate for uses involving moderate pressure. They are most appropriately used in fire protection systems, water transport and plumbing. They are ideal where strength, reliability and ease of installation are required.
| DIN | EN | BS | NFA | ASTM | ASME |
|---|---|---|---|---|---|
| – | – | – | ASTM A795 Grade B | ASME SA 795 Grade B | – |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.30 | – | max 1.20 | 0.035 | 0.035 | – | – | – | – | – |
| NPS Designator | Outside Diameter | Nominal Wall Thickness | Weight Plain End | Test Pressures | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Fumace-Welded | Electric-Resistance Weld | |||||||||
| in. | mm | in. | mm | lb/ft | kg/m | psi | MPa | psi | MPa | |
| 3/4 | 1.050 | 26.7 | 0.08. | 2.11 | 0.86 | 1.28 | 500 | 3.45 | 700 | 4.83 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.4 | 2.1 | 500 | 3.45 | 700 | 4.83 |
| 1 1/4 | 1.660 | 42.1 | 0.109 | 2.77 | 1.81 | 2.72 | 500 | 3.45 | 1000 | 6.89 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.08 | 3.12 | 500 | 3.45 | 1000 | 6.89 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.64 | 3.96 | 500 | 3.45 | 1000 | 6.89 |
| 2 1/2 | 2.875 | 73 | 0.12 | 3.05 | 3.53 | 5.3 | 500 | 3.45 | 1000 | 6.89 |
| 3 | 3.500 | 88.9 | 0.12 | 3.05 | 4.33 | 6.5 | 500 | 3.45 | 1000 | 6.89 |
| 3 1/2 | 4.000 | 101.6 | 0.12 | 3.05 | 4.97 | 7.46 | 500 | 3.45 | 1200 | 8.27 |
| 4 | 4.500 | 114.3 | 0.12 | 3.05 | 5.61 | 8.36 | 500 | 3.45 | 1200 | 8.27 |
| 5 | 5.563 | 141.3 | 0.134 | 3.4 | 7.77 | 11.58 | B | B | 1200 | 8.27 |
| 6 | 6.625 | 168.3 | 0.134 | 3.4 | 9.29 | 13.84 | B | B | 1000 | 6.89 |
| 8 | 8.625 | 219.1 | 0.188C | 4.8 | 16.94 | 25.41 | B | B | 800 | 5.51 |
| 10 | 10.750 | 273 | 0.188C | 4.8 | 21.21 | 31.82 | B | B | 700 | 4.83 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Carbon Steel A795 GR B Pipes from Impex Tube India provides superior corrosion resistance, high strength, and toughness. Our Pipe is engineered for a wide range of industrial uses, providing performance and reliability in demanding conditions with competitive pricing.
Impex Tube India is among the biggest Carbon Steel A795 GR B Pipes suppliers from Mumbai, India, that offers a wide range of superior pipes designed to suit multiple industries with reliable delivery and excellent service to address diversified project requirements.
Yes, we also provide customized sizes for Carbon Steel A795 GR B Pipes to suit your exact specifications. Our professionals at Impex Tube India strive to give you customized solutions for all your Piping & tubing requirements. For more information, feel free to contact us at sales@impextubeind.com.
CS A795 GR B Pipes are extensively utilized in fire protection systems such as standpipe and sprinkler systems because they are strong and resistant to corrosion. They are also used in plumbing systems, HVAC uses and low-pressure water transport. These pipes find use in commercial as well as industrial environments and are perfect for commercial and industrial environments, with long-lasting quality and consistent performance in fire safety and water supply systems. Due to their resistance to wear and installability. They are even applicable to residential structures, factories, and commercial buildings, where safety and optimal water flow is critical in such systems.
