Home > Carbon Steel > Carbon Steel A106 GR B Pipes

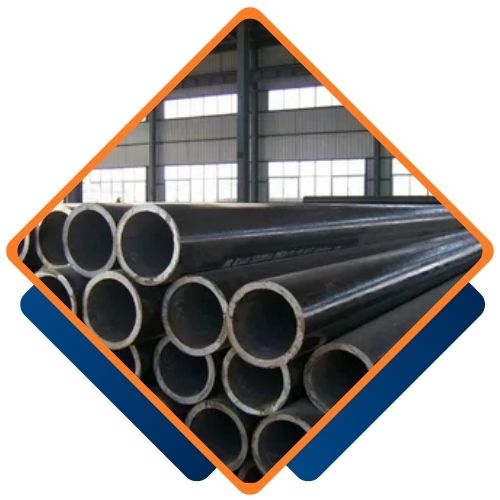

Impex Tube India is a Mumbai-based organization that is a trusted name in the manufacture and supply of precision-engineered piping products. Some of our superior-quality products include Carbon Steel A106 GR B Pipes, which are made of high-quality carbon steel and have high pressure and temperature resistance. These pipes are produced in a variety of shapes like round and shapes as desired. The pipes are applicable for smooth piping systems. A106 GR B grade of pipes ensures mechanical properties and stability, so they are ideally suitable for application in refineries, power plants, and other adverse industrial conditions. Carbon Steel A106 GR B Pipes are composed primarily of carbon and include additive elements like manganese, phosphorus, sulfur, and silicon to make them tough and weldable.
These pipes ensure favorable mechanical characteristics like tensile strength of minimum 485 MPa, yield strength of 240 MPa, and elongation of minimum 22% depending upon the size of the pipe. They have a physically constant density of about 7.85 g/cm³ and a melting point of approximately 1425–1540°C. A106 GR B pipes are produced for their applications under heat conditions and are compatible under hard industrial environments under pressure and temperature. Carbon Steel A106 GR B Pipes find extensive applications in high-temperature and high-pressure piping systems needed by industries.
| Standards | ASTM, ASME and API, ANSI B 36.10 |
|---|---|
| Grades | ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic Etc |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter ASTM A106 Grade B Pipe |
| Additional Testing | Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR |
| ASME Standard | B36.10M Welded and Seamless Wrought Steel Pipe |
| ANSI Standard | B1.20.1 Pipe Threads, General Purpose |
| Element | ASTM A106 Carbon Steel Gr. B |
| C | 0.30 |
| Mn | 0.29-1.06 |
| P | 0.04 |
| S | 0.04 |
| Cu | 0.40 |
| Ni | 0.40 |
| Cr | 0.4 |
| Mo | 0.15 |
| V | 0.08 |
| Element | ASTM A106 Carbon Steel Gr. B |
| Tensile Strength | 60,000 (415) MPa |
| Yield Strength (0.2%Offset) | 35,000 (240) MPa |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Opting for CS A106 GR B Pipes from Impex Tube India means choosing exceptional strength, durability, and corrosion resistance. Engineered to perform in a wide range of industrial applications, these pipes offer reliable performance even in demanding conditions. We combine quality and affordability to deliver solutions that meet both technical and budgetary requirements.
| ASTM A106 Grade B Seamless Pressure Pipe OD milimeter | Pipe WT milimeter | inch | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Impex Tube India stands as one of the leading suppliers of Carbon Steel A106 Grade B Pipes in Mumbai, India, offering a wide range of premium-quality pipes designed to serve multiple industrial sectors. With a strong focus on reliability and customer satisfaction, we ensure timely delivery and dependable service to meet the unique demands of every project.
Yes, we offer custom sizes for Carbon Steel A106 GR B Pipes to match your specific project requirements. At Impex Tube India, our dedicated team is focused on delivering customized piping and tubing solutions that ensure quality, precision, and performance. For more information or to discuss your needs, please contact us at sales@impextubeind.com.
These pipes find extensive use in oil and gas refineries, petrochemical plants, power generation plants, and chemical processing units. They are ideal for conveying steam, water, oil, and gas in boiler installations, heat exchangers, and pressure vessels. They have immense strength, longevity, and resistance to heat and also prove suitable for mechanical and structural use. A106 GR B Pipes are the ideal choice for use in seamless piping in aggressive and critical industrial processes.
