Home > Carbon Steel > Carbon Steel API 5L Grade B Pipes

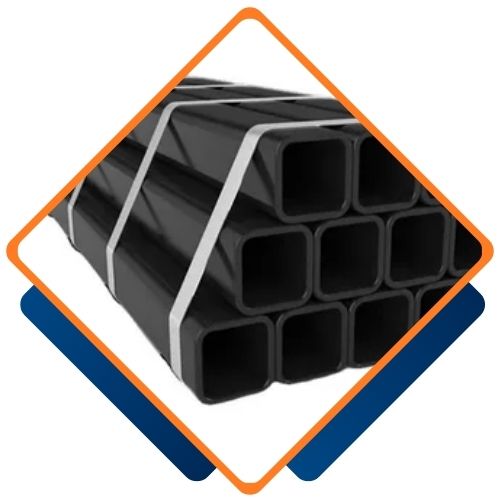

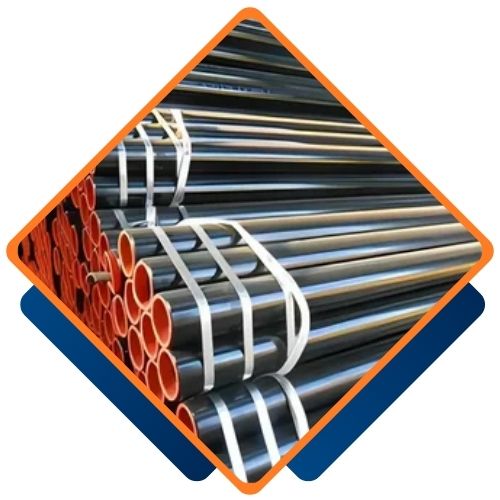

Impex Tube India, Mumbai, India, is a leading manufacturer of superior piping solutions. We deal in Carbon Steel API 5L Grade B Pipes, fabricated from top-class carbon steel and present in different shapes like round, square, and customized shapes. These pipes conform to the API 5L Grade B standard and provide superior durability and performance. Renowned for their superior strength, resistance to corrosion, and weldability, they are best used for applications in the transportation of oil, gas, and water, hence highly suitable for various industrial applications.
Carbon Steel API 5L Grade B Pipes consist mostly of carbon (maximum of 0.26%), manganese (0.30–1.20%), and traces of sulfur and phosphorus. These pipes have very good mechanical properties such as a yield strength of not less than 240 MPa and tensile strength of between 415 to 550 MPa. Their physical properties include high durability, good thermal conductivity, and resistance to corrosion. These pipes are very weldable and are built to withstand high pressure, which makes them perfect for application in oil, gas, and water transportation systems under harsh conditions.
| Mechanical Properties PSL 1 | |||||
| Grade | Yield Strength(Min.) | Tensile Strength(Min.) | Elongation | ||
| Ksi | MPa | Ksi | MPa | E=1944 A 0.2 /U 0.9 | |
| B | 35 | 241 | 60 | 414 | |
| X42 | 42 | 290 | 60 | 414 | |
| X46 | 46 | 317 | 63 | 434 | |
| X52 | 52 | 359 | 66 | 455 | |
| X56 | 56 | 386 | 60 | 414 | |
| X60 | 60 | 414 | 63 | 434 | |
| X65 | 65 | 448 | 66 | 455 | |
| Chemical Composition % | ||||||||
| PSL1 | PSL2 | |||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| A | 0.22 | 0.90 | 0.03 | 0.03 | 0.22 | 1.20 | 0.025 | 0.015 |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| X42 | 0.26 | 1.30 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X46 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X52 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X56 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X60 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.45 | 0.025 | 0.015 |
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 0.22 | 1.65 | 0.025 | 0.015 |
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 0.22 | 1.85 | 0.025 | 0.015 |
PSL 2 Pipe Sizes: Nominal Pipe Size 1/2″ to 48 ” O.D.

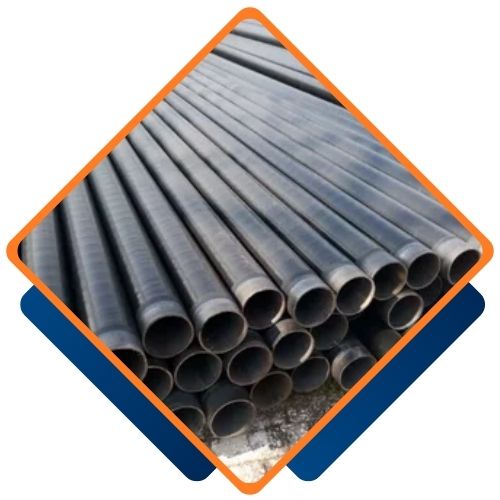

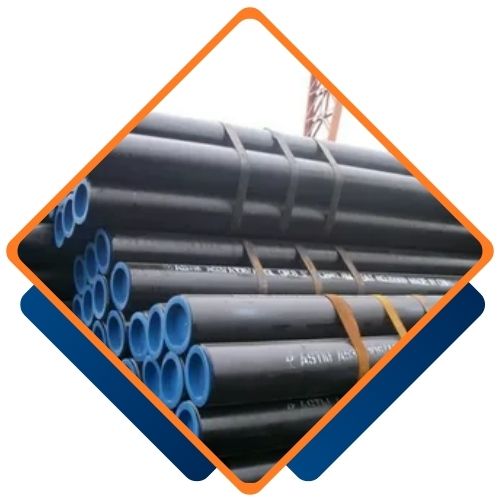

Wall Thickness: Schedule 10 through 160, STD, XS, XXS.

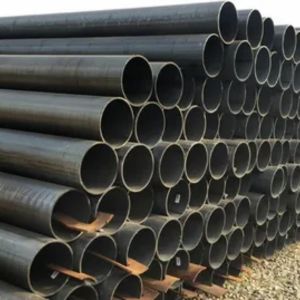

API 5L PSL 2 Seamless Pipe: B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450)
DIMENSION: FROM 1/4” UP TO 24”

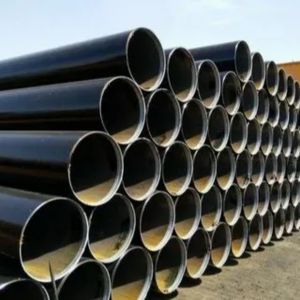

API 5L PSL 2 Welded Pipe: B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450) – X70 (L485) – X80 (L555)
DIMENSION: FROM 1/2” UP TO 60”

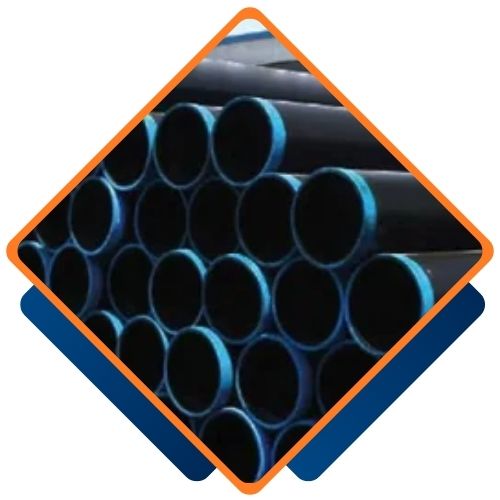

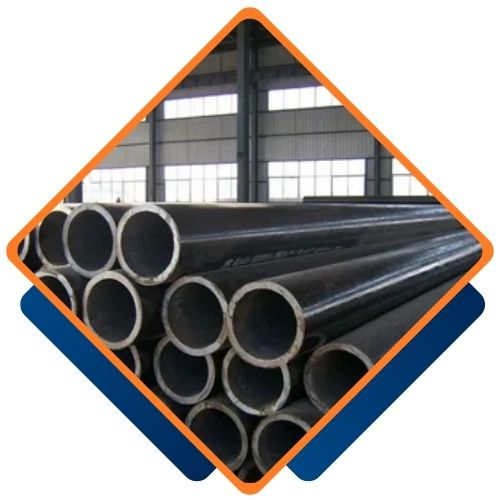

Weld Alternatives: ERW, HF, DSAW/SAWL, SMLS, HSAW
PSL 2 Pipe Product Specification Level: API 5L PSL 2 PSL 2, API 5L PSL 2 PSL 1
Additional Services: Internal Coating
API 5L Grade B Hot Selling Grades: API 5L X42 Pipe, API 5L X46 Pipe, API 5L X52 Pipe, API 5L X56 Pipe, API 5L X60 Pipe, API 5L X65 Pipe, API 5L X70 Pipe
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Carbon Steel API 5L Grade B Pipes from Impex Tube India offers exceptional corrosion resistance, high tensile strength, and long-lasting durability. These pipes are engineered to meet the demands of a wide range of industrial applications, ensuring consistent performance even in the most challenging environments. With a focus on quality and affordability, we provide reliable piping solutions that combine strength and value, making them ideal for your project requirements.
Impex Tube India stands among the leading suppliers of Carbon Steel API 5L Grade B Pipes in Mumbai, India. We offer a wide range of premium-quality pipes, carefully crafted to serve the needs of multiple industries. Our commitment to quality, timely delivery, and customer-focused service ensures that we consistently meet the varied demands of our clients across different sectors and project scales.
Yes, we provide custom sizes for Carbon Steel API 5L Grade B Pipes to match your specific project requirements. At Impex Tube India, our team is dedicated to delivering customized piping and tubing solutions that ensure optimal performance and efficiency. For further information or to discuss your needs in detail, feel free to contact us at sales@impextubeind.com.
CS API 5L Grade B Pipes are extensively utilized in the oil and gas sector for the transportation of crude oil, natural gas, and refined petroleum products over long distances. The pipes are also critical in water supply systems, power plants, chemical processing, and construction. Their high strength and resistance to corrosion render them ideal for onshore and offshore pipelines, providing consistent performance in hostile environments. Additionally, they are employed in constructions like bridges and structures because they are durable and can handle high pressure.
