Home > Stainless Steel >Stainless Steel 409 Pipes

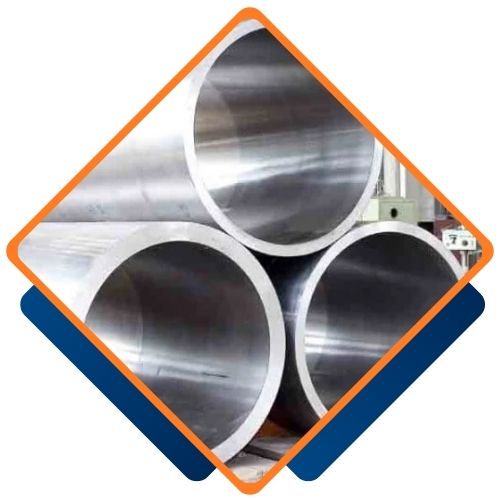

Impex Tube India, a well-established manufacturer and supplier of high-quality pipes and tubes in Mumbai, India, has a vast collection of stainless steel products suited for industrial applications. Among its top products, Stainless Steel 409 Pipes are perfectly suited for processes that demand good oxidation resistance, weldability, and high-temperature durability. These pipes are produced in compliance with international standards to provide superior performance and longevity. Impex Tube India serves the automotive, construction, and energy sectors with dependable and affordable piping solutions supported by quality assurance and customer-oriented service.
Stainless Steel 409 Pipes are ferritic stainless steel pipes made up of iron, chromium (10.5–11.75%), and minor percentages of carbon, silicon, manganese, nitrogen, and in some cases, titanium for stabilization. The lower percentage of carbon increases weldability and minimizes the risk of intergranular corrosion. Pipes have moderate mechanical properties with tensile strength ranging between 380–450 MPa and yield strength ranging about 170–240 MPa based on the heat treatment. They show satisfactory oxidation resistance at high temperatures and structural integrity against thermal cycling and are suitable for automotive and heat-intensive use. SS 409 is the trade-off between strength, cost, and corrosion resistance.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 409 Pipes from Impex Tube India ensures you get the high quality products you need. Our pipes are manufactured using advanced processes to ensure excellent durability and corrosion resistance. We adhere to strict industry standards with a focus on accuracy and quality. Our experienced team provides exceptional customer support, guiding you through your selection process. We offer competitive pricing and on-time delivery, ensuring you get your order when you need it. Trust Impex Tube India to provide reliable and efficient pipeline solutions that will stand the test of time.
Impex Tube India, one of the largest suppliers of Stainless Steel 409 Pipes in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR | JIS | BS |
|---|---|---|---|---|---|---|
| 409 | 1.4512 | S40900 | X2CrTi12 | Z3CT12 | SUH409 | 409S19 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
Yes, we offer custom sizes for Stainless Steel 409 Pipes to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
Stainless Steel 409 Pipes are widely utilized in the automotive sector, especially exhaust systems, mufflers, catalytic converter housings, and tailpipes, because of their superior heat and oxidation resistance. They are also utilized in industrial furnaces and heat exchangers, where high-temperature stability and corrosion resistance are critical. In the construction industry, SS 409 pipes are utilized for structural supports and cladding exposed to environmental conditions. These pipes are ideal for use in agriculture, mining, and food processing where resistance to corrosion and durability are required. Their weldability, formability, and affordability make them a versatile option across various industries.
