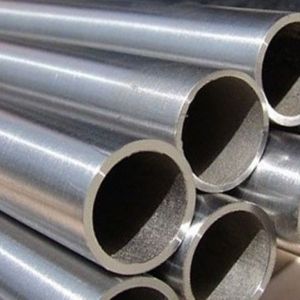

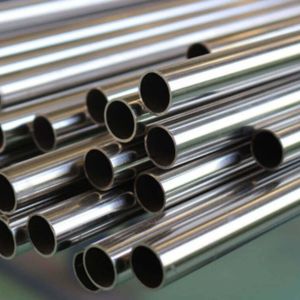

Impex Tube India, a reputable manufacturer and supplier located in Mumbai, India, is recognized for providing top-notch stainless steel piping solutions to several industrial segments. One of its high-end products is Stainless Steel 316Ti EFW (Electric Fusion Welded) Pipes, a titanium-stabilized form of 316 stainless steel. These pipes are formulated to provide better resistance to corrosion, heat, and intergranular attack. Made as per global standards, Impex Tube India’s SS 316Ti EFW pipes are best suited for use in industries like petrochemical, chemical processing, power generation, and marine engineering.
Stainless Steel 316Ti EFW Pipes consist of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and an amount of titanium at least five times the amount of carbon for stabilization. The composition enhances weldability and corrosion resistance. This composition enhances intergranular corrosion resistance when subjected to welding and high-temperature exposure. The pipes have very good mechanical strength, with a tensile strength of around 550 MPa, yield strength of 240 MPa, and elongation of around 40%. SS 316Ti EFW pipes retain high toughness, weldability, and formability, which makes them appropriate for aggressive environments with high temperatures and corrosive substances.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 08Ch17N13M2 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316Ti EFW Pipes from Impex Tube India guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | At 100 °C | At 500 °C | |||||
| 316Ti | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
We offer custom sizes for Stainless Steel 316Ti EFW Pipes to meet your specific needs. Our dedicated team at Impex Tube India provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@impextubeind.com.
Stainless Steel 316Ti EFW Pipes find extensive usage in industries where there is an urgent need for high corrosion resistance and durability to withstand high thermal stress. These pipes are very commonly used in chemical processing industries, especially where sulfuric, phosphoric, and acetic acids are being handled. They are utilized in heat exchangers, pressure vessels, and pipelines in contact with corrosive environments in the oil and gas industry. Intergranular corrosion resistance by SS 316Ti places it in demanding sectors such as power generation and boiler systems and weldable parts in furnaces. The pipes also find the marine sector, desalting units, and manufacture of medicines apt, wherein structural integrity during higher temperatures alongside cleanliness is key.
