Home > Stainless Steel >Stainless Steel 316H EFW Pipes

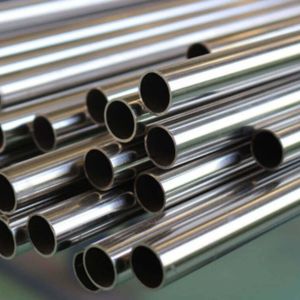

Impex Tube India, a leading Mumbai-based manufacturer and supplier, is expert in providing superior stainless steel piping solutions for high-performance industrial requirements. One of its high-performance products is Stainless Steel 316H EFW (Electric Fusion Welded) Pipes, which are renowned for their superior high-temperature strength and corrosion resistance. These pipes are engineered to resist extreme pressure and thermal stress, making them suitable for demanding applications. Made with precision and according to global standards, the 316H EFW tubes of Impex Tube India cater to numerous industries such as oil & gas, petrochemical, power generation, and chemical processing.
Stainless Steel 316H EFW Pipes are a high-carbon variant of SS 316, providing better high-temperature strength and creep resistance. The alloy generally has 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a higher carbon level (0.04–0.10%). This composition makes it more resistant to pitting, crevice corrosion, and stress corrosion cracking in chloride-rich environments. Mechanically, SS 316H pipes provide tensile strength of approximately 515 MPa, yield strength of 205 MPa, and elongation of approximately 40%. The pipes are strong structurally at high pressure and temperature and thus suitable for heat-intensive and corrosive applications.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 316H | S31609 | 1.4401 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Tensile Strength | Yield Strength | Elongation |
| SS 316H | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H EFW Pipes from Impex Tube India guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316H | 8000 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 193 | 500 | 740 |
We offer custom sizes for Stainless Steel 316H EFW Pipes to meet your specific needs. Our dedicated team at Impex Tube India provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@impextubeind.com.
Stainless Steel 316H EFW Pipes are widely utilized in industries requiring high performance at high pressure and temperature. Due to their high carbon content, they are used in power plants, where they are utilized in reheater and superheater tubes, boilers, and steam piping. In petrochemical and oil & gas industries, they are utilized in heat exchangers, pressure vessels, and refinery parts subjected to corrosive and hot conditions. Chemical processing units employ them for the treatment of hostile acids and chemical chemicals. Their weldability and toughness also make them suitable for nuclear power plants, marine equipment, and industrial exhaust systems where extreme thermal and mechanical stresses are experienced.
