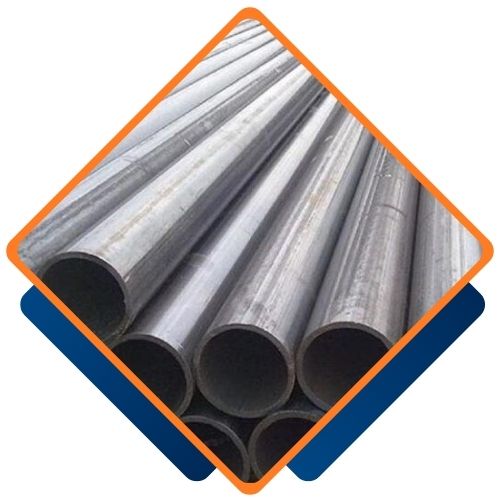

Home > Stainless Steel >Stainless Steel 316 and 316L EFW Pipes
Impex Tube India is a prominent manufacturer and supplier of high-grade pipes and tubes located in Mumbai, India. With an excellent establishment in local and global markets, the company deals in high-grade Stainless Steel 316 and 316L EFW (Electric Fusion Welded) Pipes, which are renowned for their superior strength and corrosion resistance. Impex Tube India is dedicated to providing precision-engineered piping solutions that comply with international standards. Their large product offerings, competitive prices, and reliable delivery make them a go-to option for industries needing trustworthy stainless steel piping fittings.
Stainless Steel 316 and 316L EFW Pipes consist mainly of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which provides increased corrosion resistance, particularly against chlorides and acidic environments. The low carbon level in 316L provides better weldability and reduces carbide precipitation. These pipes have superior mechanical properties, such as tensile strength of approximately 515 MPa and yield strength of 205 MPa. They also exhibit high toughness and ductility, even at cryogenic temperatures, and are thus well-suited for demanding applications where strength and resistance to extreme conditions are needed.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | WERKSTOFF NR. | UNS | BS | JIS | GOST | AFNOR | EN |
| SS 316 | 1.4401 | S31600 | 316S31 / 316S33 | SUS 316 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 | S31603 | 316S11 / 316S13 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Grade | C | Mn | S | Cr | Mo | Si | P | Ni | N | |
| 316 | min. | – | – | – | 16.0 | 2.00 | – | – | 10.0 | – |
| max. | 0.08 | 2.00 | 0.03 | 18.0 | 3.00 | 0.75 | 0.045 | 14.0 | 0.10 | |
| 316L | min. | – | – | – | 16.0 | 2.00 | – | – | 10.0 | – |
| max. | 0.08 | 2.00 | 0.03 | 18.0 | 3.00 | 0.75 | 0.045 | 14.0 | 0.10 | |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 40% | 205 | 95 | 217 |
| 316L | 485 | 40% | 170 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316 and 316L EFW Pipes from Impex Tube India guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | |
| SS Pipes Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
| 316 | 515 | 205 | 35 |
| 316L | 485 | 170 | 35 |
We offer custom sizes for Stainless Steel 316 and 316L EFW Pipes to meet your specific needs. Our dedicated team at Impex Tube India provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@impextubeind.com.
Stainless Steel 316 and 316L EFW Pipes are extensively employed in different industries because of their superior corrosion resistance and mechanical strength. They find extensive use in the chemical and petrochemical industries for working with corrosive fluids and gases. In food and beverage processes, these pipes provide hygiene and cleanliness because they are non-reactive. Pharmaceutical manufacturing, sea environments, heat exchangers, and architecture are also fields where they find application. Their strength, weldability, and resistance to crevice and pitting corrosion make them perfect for industrial and residential piping systems that work under severe conditions.
