Home > Stainless Steel >Stainless Steel 304L EFW pipes

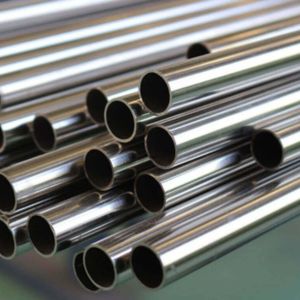

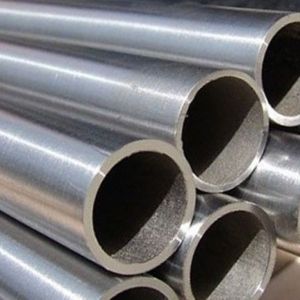

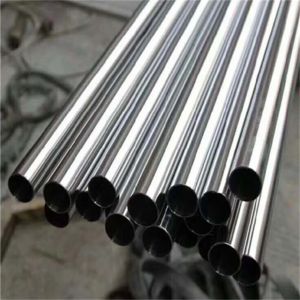

Impex Tube India, a well-established Mumbai-based manufacturer and supplier, deals in supplying high-quality pipes and tubes to various industries. Impex Tube India provides Stainless Steel 304L EFW (Electric Fusion Welded) Pipes, which are highly resistant to corrosion, strong, and have a smooth surface finish. These pipes are designed to be long-lasting and precise and are produced according to international standards. With a fierce commitment to delivering quality, satisfactory customer service, and timely schedules, Impex Tube India established itself as an integral source for stainless steel pipe solutions in local as well as international markets.
Stainless Steel 304L EFW Pipes are constructed from an austenitic stainless steel alloy containing chromium (18–20%), nickel (8–12%), and lower carbon content, which improves weldability and reduces carbide precipitation during welding. The composition provides excellent resistance to corrosion and oxidation in a variety of environments. The pipes have a tensile strength of about 485 MPa and a yield strength of about 170 MPa. With excellent toughness and ductility, even in low temperatures, 304L EFW pipes are best for use in cases demanding strength, cleanliness, and high corrosion resistance.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304L | S30403 | 1.4306 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 03Х18Н11 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304L | 485 | 40 | 170 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304L EFW Pipes from Impex Tube India guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
We offer custom sizes for Stainless Steel 304L EFW Pipes to meet your specific needs. Our dedicated team at Impex Tube India provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@impextubeind.com.
Stainless Steel 304L EFW Pipes are used by many industries for their superior corrosion resistance, weldability, and mechanical strength. They are perfect for use in the chemical industry and pharmaceutical for carrying reactive fluids and gases. They maintain hygiene and non-reactivity in processing lines in the food and beverage sector. The pipes find application in water treatment plants, architectural buildings, and heat exchangers. Due to their capability to tolerate moderate to high temperatures and corrosive environments, they are suitable for pressure vessel and boiler uses and general engineering and fabrication purposes demanding clean and robust piping systems.
