Home > Carbon Steel > SA178 Tubes

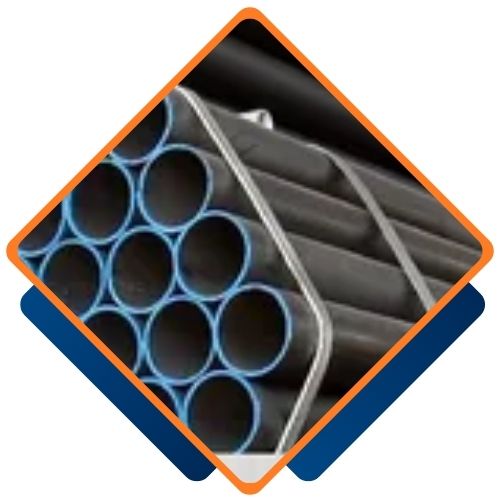

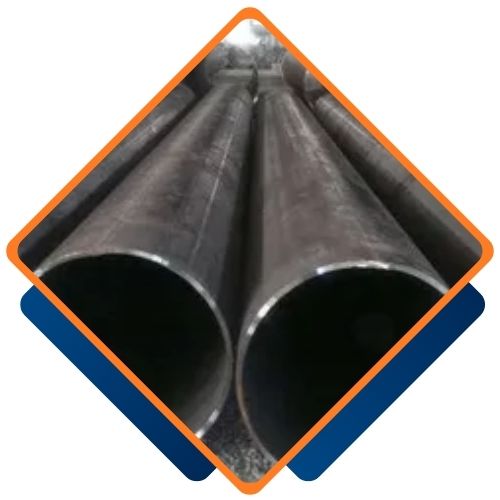

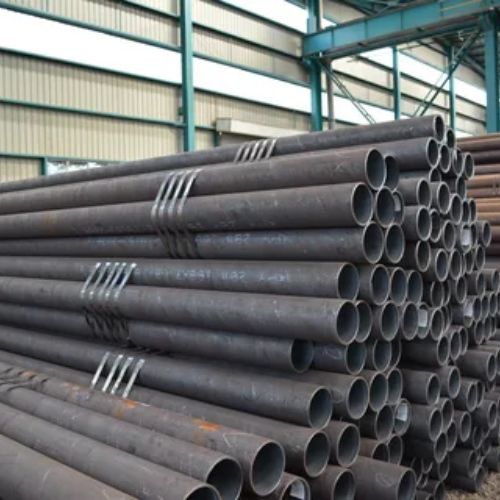

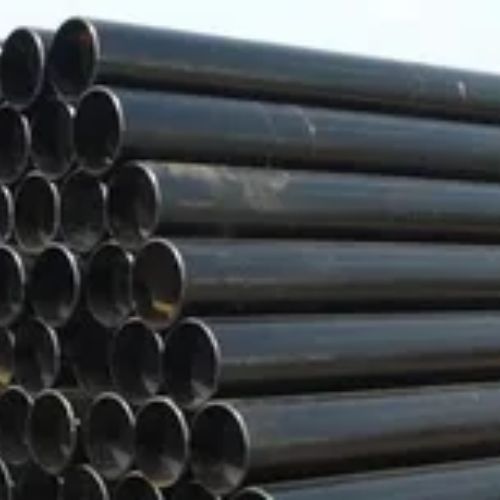

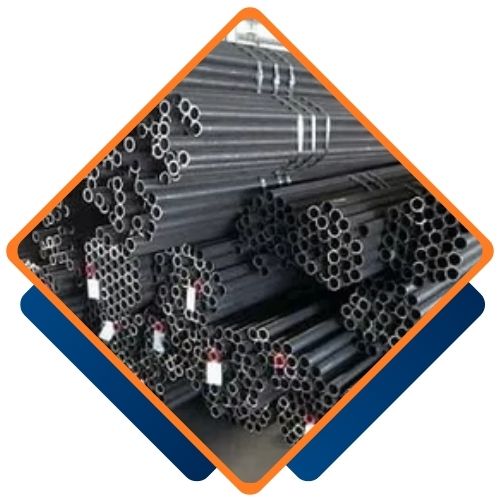

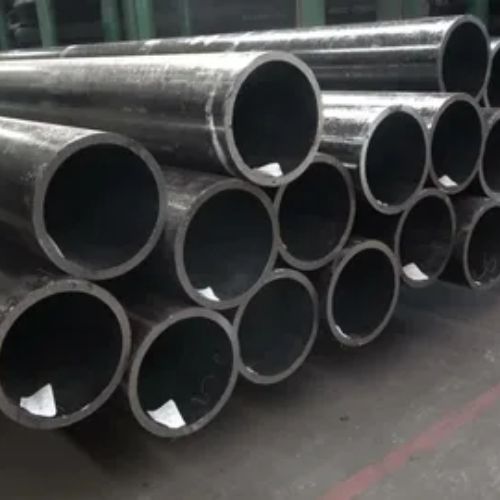

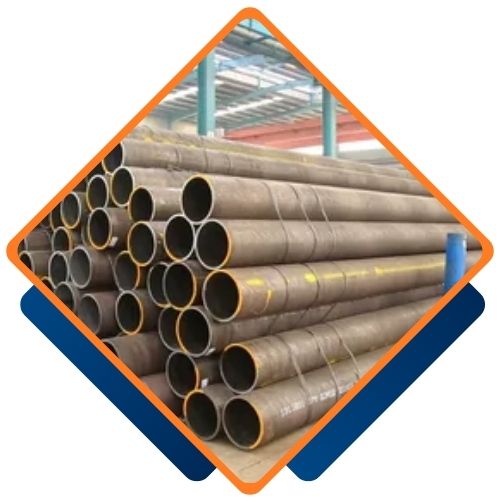

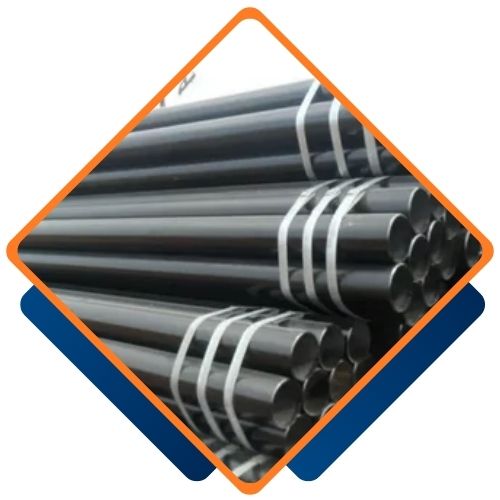

Impex Tube India, a well-known manufacturer and supplier located in Mumbai, India, provides high-quality SA178 Tubes that are focused on performance and reliability for boiler and heat exchanger applications. These carbon steel tubes are recognized for their exceptional thermal conductivity, strength, and durability in high-pressure and high-temperature conditions. Produced according to ASTM specifications, SA178 tubes by Impex Tube India are best suited for application in power plants, refineries, and industrial boilers. With emphasis on precision engineering and uniform quality, the company serves domestic as well as international customers in different industrial segments.
SA178 Tubes are mostly carbon steel, with grades usually being Grade A and Grade C. Their chemical composition consists of carbon (up to 0.27%), manganese (0.93–1.20%), and trace amounts of phosphorus and sulfur. These tubes have good mechanical properties, with tensile strength approximately 415 MPa, yield strength approximately 255 MPa, and good elongation and ductility (at least 30%). SA178 tubes are electric-resistance welded and are frequently stress-relieved to maintain uniformity and strength. They can be relied upon due to their high-temperature, high-pressure resistance, which makes them popular for use in heat exchanger and boiler applications.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 178 Gr. A | A/SA 178 Gr. C | A/SA 178 Gr. D |
| C | 0.06 – 0.18 | 0.35 max | 0.27 max |
| Mn | 0.27 – 0.63 | 0.80 max | 1.00 – 1.50 |
| P | 0.035 max | 0.035 max | 0.030 max |
| S | 0.035 max | 0.035 max | 0.015 max |
| Si | – | – | 0.10 min |
| Element | A/SA 178 Grade A | A/SA 178 Grade C | A/SA 178 Grade D |
| Tensile Strength KSI (MPa) | 47 (325) | 60 (415) | 70 (485) |
| Yield Strength KSI (MPa) | 26 (180) | 37 (255) | 40 (275) |
| Elongation min. % | 35 | 30 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing SA178 tubes from Impex Tube India ensures you receive high-quality products tailored to your specific needs. Our tubes are manufactured using premium-grade carbon steel, adhering to stringent industry standards for durability and performance. With a commitment to precision engineering, we offer excellent dimensional accuracy and superior mechanical properties. Our experienced team provides expert guidance, timely delivery, and exceptional customer service, making us a trusted partner in your projects. Plus, our competitive pricing ensures you get the best value without compromising on quality.
Impex Tube India, one of the largest suppliers of SA178 Tubes in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for SA178 Tubes to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
SA178 Tubes find extensive application in high-pressure and high-temperature applications, especially in superheaters, boilers, and heat exchangers. The tubes find extensive application in power generation, chemical processing, petrochemicals, oil and gas, and the like where heat transfer is essential. SA178 tubes find application in the steam generation systems of thermal and nuclear power plants. Their high strength and resistance to internal pressure render them appropriate for use in pressure vessels and industrial boilers. They also find application in refineries, fertilizer plants, and process industries that depend on consistent performance, safety, and efficiency under extreme operating conditions.
