Home > Duplex Steel > Duplex Steel Tubing 2205

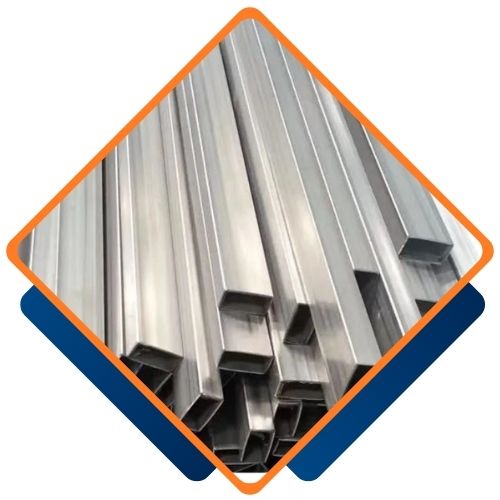

Impex Tube India located in Mumbai, India, is a reliable manufacturer and supplier of precision-engineered high-quality metal tubing solutions with prompt service in diverse industries. Duplex Steel Tubing 2205 is one of its most important offerings a high-strength, corrosion-resistant alloy constructed from duplex stainless steel. It is made for use in demanding conditions and is offered in round, square and rectangular shapes among others. The 2205 grade has superior mechanical properties, with a combination of strength and stress corrosion resistance, making it suitable for demanding industrial use.
Duplex Steel Tubing 2205 consists of about 22% Chromium, 5-6% Nickel, 3% Molybdenum, and balanced by Iron, and has superior corrosion resistance. It has high mechanical strength with tensile strength of about 620 MPa and yield strength of 450 MPa, as well as impact toughness. Physically, it possesses a density of 7.8 g/cm³, a melting range of 1350–1450°C, and thermal expansion is low, providing improved dimensional stability when exposed to heat. All these elements of composition and properties render it highly suitable for marine, chemical, and structural use under high-stress conditions.
| Tube Specifications |
|
|---|---|
| Tube Standard | DIN, JIS, ASTM, EN, GB, AISI, ASME Tube Supplier |
| Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Length | Single Random, Double Random, Standard & Cut length |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Tube |
| Tube Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Tube Thickness | 0.3mm – 50 mm |
| Seamless Tube Outer Diameter | 6.00 mm OD up to 250 mm OD, Sizes up to 12” NB |
| EFW Tube size | 5.0 mm – 1219.2 mm |
| Welded Tube size | 5.0 mm – 1219.2 mm |
| wall thickness | 0.020″ –0.220″ (special wall thicknesses available) |
| End | Plain End, Beveled End, Treaded Tube. |
| Specialized in |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Tube Marking | All Tubes are marked as follows: Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler and Heatexchanger, Oil Tube, Fluid Tube, Gas Tube, |
| Form | Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Tubes, “U” Shape, Pan Cake Coils etc. |
| Material Test Certificates (MTC) |
|
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish,etc |
| Chemical Composition % | ||||
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
PIPE STANDARD | WERKSTOFF NR. | UNS |
Duplex 2205 Tube | 1.4462 / 1.4462 | S31803 / S32205 |
| Duplex Stainless Steel | 2205 |
| Density | 7.805 |
| Melting Range,℃ | 1450 ℃ |
| Elongation % | 25 min. |
| Tensile Strength (Mpa) | 655 |
| Yield Strngth (Mpa) | 450 |
| Hardness (Brinell) | 293 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Duplex Steel Tubing 2205 from Impex Tube India guarantees exceptional quality and longevity, providing exceptional corrosion resistance and excellent strength. Our commitment to delivering the best in service and quality products assures customer satisfaction in numerous industrial applications. With our proficiency in Duplex steel solutions, you can count on us to deliver a superior, tailor-made piping solution to suit your specific needs.
Impex Tube India, being the largest Duplex Steel Tubing 2205 suppliers in the Mumbai, India. Provides an extensive array of high-quality tubes and pipes for a multitude of industrial uses. Our large inventory and commitment to excellent service establish them as a reliable option for Duplex steel products in the area, providing consistent solutions that provide to a diverse range of project needs.
Yes, we provide custom sizes for Duplex Steel Tubing 2205 to meet your specific requirements. At Impex Tube India, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@impextubeind.com.
Duplex Steel Tubing 2205 is used extensively throughout industry because of its superior strength and corrosion resistance. It finds its best application in the oil and gas, chemical processing, and marine sectors, especially for piping systems, pressure vessels, and heat exchangers. Its ability to resist stress corrosion cracking and pitting, to a great extent, qualifies it for desalination plants as well as offshore platforms. It also finds its application in pulp and paper machinery, food processing equipment, as well as in structural components where durability and cleanliness are paramount. Its stability at high pressure and abusive environments provides for long-term operation.
