Home > Copper Nickel > Copper Nickel Welded Tubing

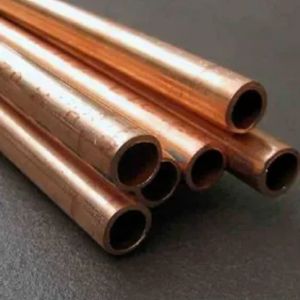

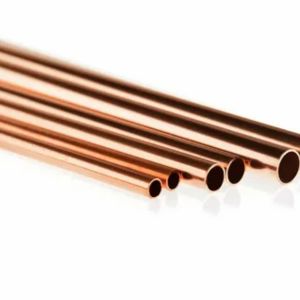

Impex Tube India, based in Mumbai, is a trusted manufacturer and supplier of high-quality tubing solutions. The company is driven by a commitment to quality and engineering excellence. It provides tubing solutions to a diverse range of industries ensuring reliability and performance in every product. One of our specialty product is Copper Nickel Welded Tubing, produced from high-quality copper-nickel alloy and available in grades such as 90/10 and 70/30. The tubes are provided in a variety of shapes such as round, square, and rectangular to provide versatility in applications. Recognized for their strength, corrosion resistance and durability. They are best suitable for marine, offshore and industrial systems needing dependable long-term performance.
CuNi Welded Tubing consists mainly of copper and nickel. Usually in 90/10 or 70/30 proportions, with trace amounts of iron and manganese to improve strength and corrosion resistance. Mechanically, it provides good tensile strength, superior ductility, and stress and fatigue resistance, which qualifies it for high-pressure use. Physically, it has low magnetic permeability, high thermal conductivity, and superior seawater corrosion and biofouling resistance. The use of welded construction provides uniformity and structure integrity, and it is thus the best choice for harsh marine, industrial, and coastal environments demanding durability and reliability.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Welded

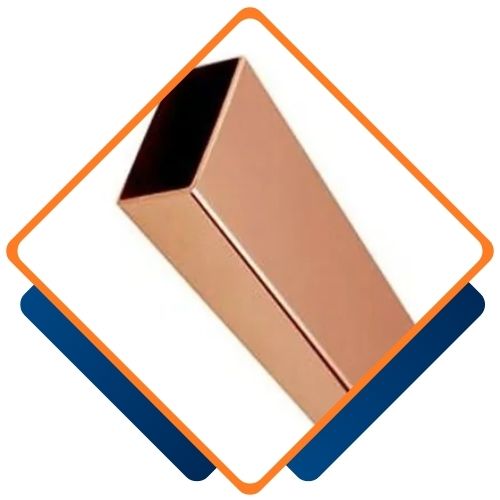

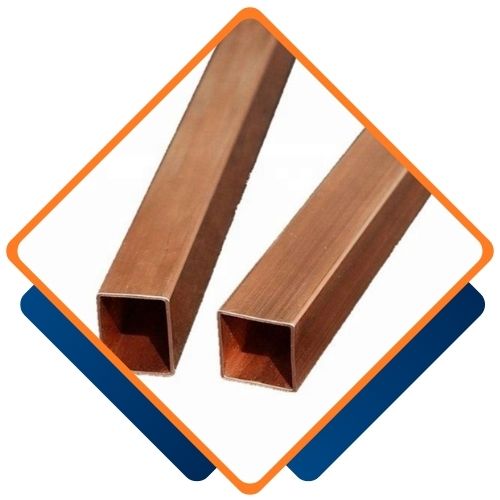

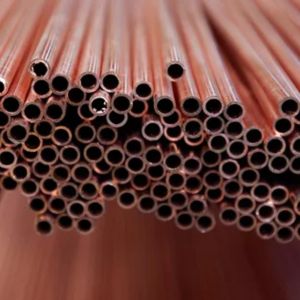

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| Property | Metric Units | Imperial Units |
|---|---|---|
Melting Point (Liquidus) | 11,500°C | 21,000°F |
Melting Point (Solidus) | 11,000°C | 20,100°F |
Density | 8.94 gm/cm³ @ 20°C | 0.323 lb/in³ @ 68°F |
Specific Gravity | 8.94 | 8.94 |
Coefficient of Thermal Expansion | 17.1 x 10 -6 / °C (20-300°C) | 9.5 x 10 -5 / °F (68-392°F) |
Themal Conductivity | 40 W/m. °K @ 20°C | 23 BTU/ft³/ft/hr/°F @ 68°F |
Thermal Capacity (Specific Heat) | 380 J/kg. °K @ 20°C | 0.09 BTU/lb/°F @ 68°F |
Electrical Conductivity (Annealed) | 5.26 microhm?¹.cm?¹ @ 20°C | 9.1% IACS |
Electrical Resistivity (Annealed) | 0.190 microhm.cm @ 20°C | 130 ohms (circ mil/ft) @ 68°F |
Modulus of Elasticity (tension) | 140 GPa @ 20°C | 20 x 10 6 psi @ 68°F |
Modulus of Rigidity (torsion) | 52 GPa @ 20°C | 7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Copper Nickel Welded Tubing from Impex Tube India guarantees exceptional corrosion resistance, strength, and long-term durability. Engineered for a wide range of industrial applications, our tubing offers reliable performance even in demanding conditions, all while maintaining cost-effectiveness and consistent quality.
Choose Copper Nickel Welded Tubing from Impex Tube India for its excellent resistance to seawater corrosion, strong protection against biofouling, and high thermal conductivity. These features make it a reliable choice for marine, coastal, and industrial applications where long-lasting performance, strength, and efficiency are essential.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
At Impex Tube India, we offer Copper Nickel Welded Tubing in custom sizes to match your exact specifications. Our dedicated team is focused on delivering tailored solutions for all your piping and tubing needs with precision and quality. For more information or to discuss your requirements, feel free to contact us at sales@impextubeind.com.
Welded Copper-Nickel Tubing has extensive use in industries that require corrosion resistance. Such as marine, chemical, and oil industries. Its corrosion resistance in sea water makes it an appropriate material for shipbuilding, desalination plants, and heat exchangers. The toughness and strength of the alloy are useful in pressure systems, hydraulic lines, and heat transfer systems. It also has effective resistance against biofouling and erosion. Its high temperature and stress resistance makes it suitable for both seawater and fresh water applications. With long-term performance in harsh conditions. It is also used in cryogenic systems and aerospace.
