Home > Copper Nickel > Copper Nickel Instrumentation Tubing

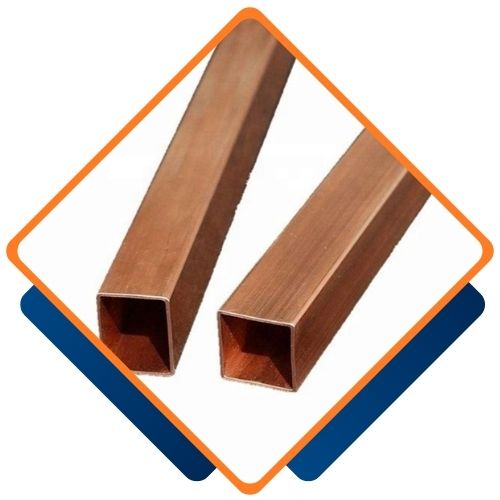

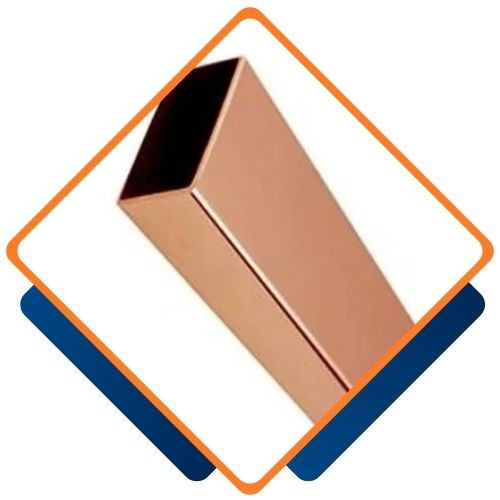

Impex Tube India, established in Mumbai is a prominent industrial tubing solutions manufacturer and supplier of high-quality tubing solutions. For marine, oil & gas and petrochemical industries. The company provides Copper Nickel Instrumentation Tubing renowned for its superior corrosion resistance, durability and performance in hostile environments. Designed as round, square, or rectangle shape tubes, they are formed with higher grade copper-nickel alloy materials so that offshore, instrumentation, and seawater service is done effectively without reducing their strength or reliability.
Composed mostly of copper and nickel with 10% nickel and approximately 90% copper in a majority proportion and with additional strength and for corrosion resistance reasons traces of manganese and iron exist. It provides outstanding mechanical properties such as good tensile strength, high ductility, and toughness, and it is therefore appropriate for harsh environments. It is physically highly conductive to heat, has low magnetic permeability, and extremely resistant to biofouling and corrosion by seawater. These properties in combination render it appropriate for utilization in marine, offshore and industrial instrumentation systems where long-lasting performance is needed.
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Grade : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Property | Metric Units | Imperial Units |
|---|---|---|
Melting Point (Liquidus) | 11,500°C | 21,000°F |
Melting Point (Solidus) | 11,000°C | 20,100°F |
Density | 8.94 gm/cm³ @ 20°C | 0.323 lb/in³ @ 68°F |
Specific Gravity | 8.94 | 8.94 |
Coefficient of Thermal Expansion | 17.1 x 10 -6 / °C (20-300°C) | 9.5 x 10 -5 / °F (68-392°F) |
Themal Conductivity | 40 W/m. °K @ 20°C | 23 BTU/ft³/ft/hr/°F @ 68°F |
Thermal Capacity (Specific Heat) | 380 J/kg. °K @ 20°C | 0.09 BTU/lb/°F @ 68°F |
Electrical Conductivity (Annealed) | 5.26 microhm?¹.cm?¹ @ 20°C | 9.1% IACS |
Electrical Resistivity (Annealed) | 0.190 microhm.cm @ 20°C | 130 ohms (circ mil/ft) @ 68°F |
Modulus of Elasticity (tension) | 140 GPa @ 20°C | 20 x 10 6 psi @ 68°F |
Modulus of Rigidity (torsion) | 52 GPa @ 20°C | 7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Instrumentation Tubing from Impex Tube India ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Select Copper Nickel Instrumentation Tubing from Impex Tube India for its outstanding resistance to seawater corrosion, protection against biofouling, and superior thermal conductivity. These qualities make it a perfect choice for marine, coastal, and industrial environments where durability, efficiency, and long-term performance are essential.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
At Impex Tube India, we provide Copper Nickel Instrumentation Tubing in custom sizes to suit your exact specifications. Our team is dedicated to delivering personalized solutions for all your piping and tubing requirements. Whether for industrial, marine, or offshore use, we ensure precision and quality in every product. For more information or to discuss your project needs, feel free to contact us at sales@impextubeind.com.

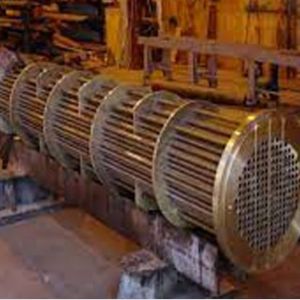

Copper Nickel Instrumentation Tubing has widespread application in industries requiring high corrosion resistance and strength. It is usually applied in marine environments for seawater piping, offshore gas and oil platforms, and shipbuilding systems. Due to its superior thermal conductivity and resistance to biofouling, it finds its suitability in heat exchangers, condensers, and cooling systems. It is also used in instrumentation and control lines, hydraulic piping and chemical process plants where accuracy and long-term performance are necessary. These tubes provide effective performance in harsh conditions and are thus a popular option in industrial and coastal use.
